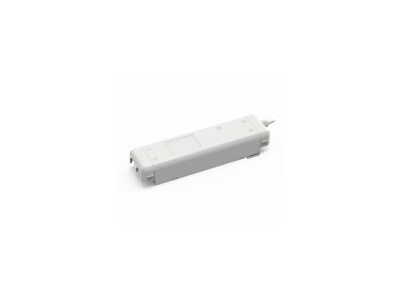

CM23

Product description

CM23 is a control box specially developed for the application of shifting machine, bath chair, electric wheelchair and other auxiliary equipment. It can control the speed synchronization of two push rods in the whole process. The thin and narrow appearance is easy to install and fix, and can be operated by wired hand controller or RF wireless remote control.

Technical data

Large input voltage: 32V DC

Large output voltage: same as input voltage

Rated output current: 4.0A (single push rod), 6.0A (double push rod total)

Number of push-rod interfaces: 2

Number of hand controller interfaces: 1

Working cycle: 10%, run continuously for 2 minutes within 20 minutes

Overcurrent protection function

LED power indicator (bright green)

IP protection: IPX6

Housing color: RAL 7035

Power cable: Moteck S DIN 41529 Plug, straight 300mm cable length

With standard fixing plate, flexible installation
